Tube ClampClimbing Frame Kit

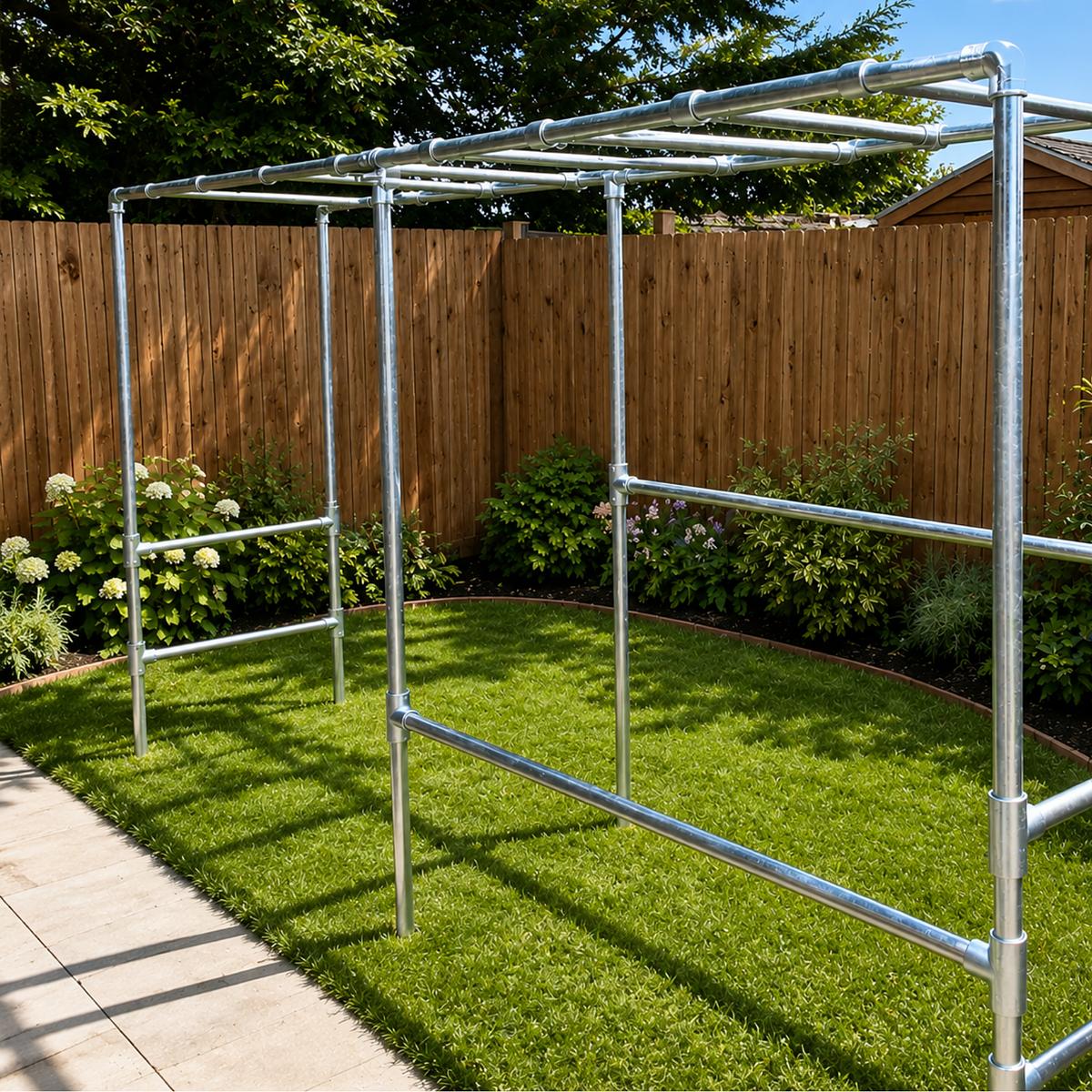

Galvanised tube and tube clamp climbing frame kit supplied will all the parts you need to assemble on site. The frame is approximately 2.2m high, 3.3m long and 700m wide. The end steps and middle horizontal rails can be fixed at a height to suit your project.
The main frame is made from strong 42.4mm galvanised tube and tube clamp parts. The monkey bars are from 33.7mm galvanised tube and supplied with reducing tube clamp part 101 to enable the different sized tubes to connect.
To view a larger image of the frame please see our gallery. Click here to view the gallery.
The kit comprises of the following:
|2 x top horizontal rails at 3300mm|
|6 x vertical posts at 2200mm|
|2 x middle horizontal rails at 1650mm|
|4 x steps at 700mm|
|7 x monkey bars at 700mm|
|14 x tube clamp part 104|
|4 x tube clamp part 125|
|14 x tube clamp reducing part 101 C42/B34|
If you are fixing the frame onto solid ground you will also need to purchase some base plates, tube clamp part 132, which are shown in the menu above. These are supplied in a set of 6, one for each vertical post. You will also require bolts, two per plate, which can also be purchased from the above menu.
You will need to add both these items to your shopping cart separately to the full kit if you require them.
To see the kit for the climbing frame click here for a pdf to view online, download or print.
Important: If you are fixing the frame directly into the ground you will need to sink the vertical posts by a minimum of 300mm.
