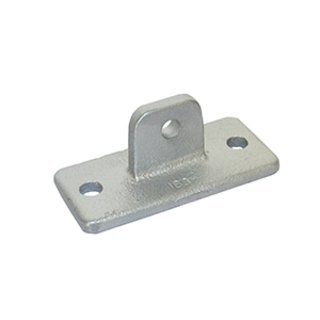

Male Swivel Locating Flange - 169M
Male Swivel Locating Flange - 169M

Discounts: Make bigger savings the more you buy. Savings are applied automatically in your basket.

A versatile swivel fitting, useful for fixing angled tubes to walls etc. Fixing holes suit a wide range of common mechanical and chemical masonry anchors which we should be pleased to quote for on request.

N.B. This fitting is available in one size only to suit all sizes of type 173F.

If you require fixings to use with this product there are two options available, Hexagon Head and Flat Head fixings. Please add click on the type you prefer and add them to your basket.

Warning: To provide sufficient stability, whole structures must not be made from swivel fittings alone.

The tubes are shown in blue for marketing purposes only, to show the detail on the clamps.

All our clamps are supplied complete with grub screws. Additional replacement screws can also be purchased click here

Please note the M10 x 60 thunder bolt is NOT suitable for use with 26.9mm tube clamps.

ImportantThis product contains fixing holes. We do not recommend pre-drilling prior to receiving the product as there can be irregularities in casting that can produce small variations in the size of the holes. Any measurements shown should be regarded as a guideline only.

Please scroll the page to ensure you see the full list of products available
Description Weight Dimensions Price
(Ex VAT)
Price
(Inc VAT)
Quantity
A B C D E
Male Swivel Locating Flange - suitable for all tube diameters - 169M Interclamp Male Swivel Locating Flange - suitable for all tube diameters - 169M
£4.81 ex VAT
£5.77 inc VAT
0.37 kg 112.0 85.0 32.0 £4.81 £5.77
M8 x 75 Ankerbolts (Thunderbolt) x 2 suitable for use with tube clamp 169 & 169M M8 x 75 Ankerbolts (Thunderbolt) x 2 suitable for use with tube clamp 169 & 169M
£1.50 ex VAT
£1.80 inc VAT
0.07 kg £1.50 £1.80
M10 x 40 Cap Head Screws - pack of 10 M10 x 40 Cap Head Screws - pack of 10
£4.44 ex VAT
£5.33 inc VAT
0.02 kg £4.44 £5.33
M10 x 40 Hexagon Head Screws - pack of 10 M10 x 40 Hexagon Head Screws - pack of 10
£3.72 ex VAT
£4.46 inc VAT
0.46 kg £3.72 £4.46
SDS 8mm x 160mm drill bit - suitable for tube clamp parts 169 & 169M SDS 8mm x 160mm drill bit - suitable for tube clamp parts 169 & 169M
£2.50 ex VAT
£3.00 inc VAT
0.06 kg £2.50 £3.00
