Slope Base Flange (11° - 29°) - 252 Slope Base Flange (11° - 29°) - 252

Slope Base Flange (11° - 29°) - 252
Discounts: Make bigger savings the more you buy. Savings are applied automatically in your basket. Full discount details

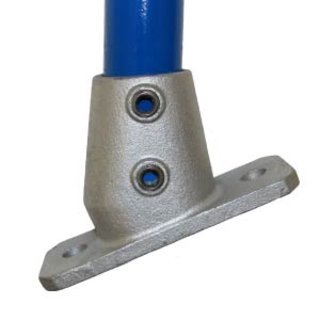

Base flange for sloping sites, adjustable from 11° to 29°. As the fixing holes in the base cannot be fixed in line with the applied load, it is only intended for light loads or structures which are sufficiently supported by virtue of their design. Where a greater load is required,type 132 is normally used, with the upright tube bent to the required angle.

The tubes are shown in blue for marketing purposes only, to show the detail on the clamps.

All our clamps are supplied complete with grub screws. Additional replacement screws can also be purchased click here

Please note the through bolt, thunder bolt and 12mm SDS drill bit are NOT suitable for use with 26.9mm tube clamps.

ImportantThis product contains fixing holes. We do not recommend pre-drilling prior to receiving the product as there can be irregularities in casting that can produce small variations in the size of the holes. Any measurements shown should be regarded as a guideline only.

DescriptionWeightDimensionsPrice
(Ex VAT)
Price
(Inc VAT)
Quantity
ABC
Slope Base Flange (11° - 29°) 48.3mm tube diameter - 252Slope Base Flange (11° - 29°) 48.3mm tube diameter - 252
£8.53 ex VAT, £10.24 inc VAT
1.47 kg172.065.0126.0£8.53£10.24
M12 x 100 Through Bolt x 2 for parts 132,145,152, 246, 251 & 252 (not for size 26.9mm)M12 x 100 Through Bolt x 2 for parts 132,145,152, 246, 251 & 252 (not for size 26.9mm)
£1.75 ex VAT, £2.10 inc VAT
0.19 kg£1.75£2.10
M12 x 100 Ankerbolts (Thunderbolts) x 2 for 132, 152, 246, 251 & 252 (not for size 26.9mm)M12 x 100 Ankerbolts (Thunderbolts) x 2 for 132, 152, 246, 251 & 252 (not for size 26.9mm)
£1.75 ex VAT, £2.10 inc VAT
0.02 kg£1.75£2.10
718105 SDS 12mm x 160mm drill bit for parts 132, 152, 246, 251 & 252 (not for size 26.9mm)718105 SDS 12mm x 160mm drill bit for parts 132, 152, 246, 251 & 252 (not for size 26.9mm)
£1.85 ex VAT, £2.22 inc VAT
0.11 kg£1.85£2.22
