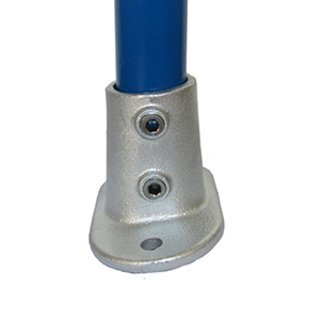

Slope Range Base (0° to 11°) - 152
Base flange for sloping sites, adjustable from 0° to 11°, usually used for guardrail and wheelchair ramp uprights. Fixing holes suit a wide range of common mechanical and chemical masonry anchors which we should be pleased to quote for on request.
To achieve optimum load characteristics, this fitting should be fitted so that the fixing holes are in line with the applied load.
The tubes are shown in blue for marketing purposes only, to show the detail on the clamps.
All our clamps are supplied complete with grub screws. Additional replacement screws can also be purchased click here
Please note the through bolt, thunder bolt and 12mm SDS drill bit are NOT suitable for use with 26.9mm tube clamps.
Important: This product contains fixing holes. We do not recommend pre-drilling prior to receiving the product as there can be irregularities in casting that can produce small variations in the size of the holes. Any measurements shown should be regarded as a guideline only.
