Structural Offset Side Palm Fixing - 144
Discounts: Make bigger savings the more you buy. Savings are applied automatically in your basket. Full discount details

A palm-type fitting, often used to attach guardrail uprights to walls, staircases and ramps. In standard form, the tube cannot pass through the bottom of the fitting, although the fitting may be modified to accommodate this at extra cost.

N.B. Access to one of the fixing holes is limited and may restrict the length and type of fixing that may be used. Dependent on load requirements, type 145 may sometimes be used as an alternative.

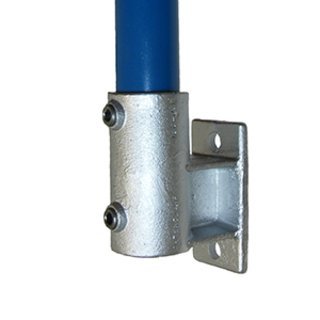

The tubes are shown in blue for marketing purposes only, to show the detail on the clamps.

All our clamps are supplied complete with grub screws. Additional replacement screws can also be purchased click here

ImportantThis product contains fixing holes. We do not recommend pre-drilling prior to receiving the product as there can be irregularities in casting that can produce small variations in the size of the holes. Any measurements shown should be regarded as a guideline only.

DescriptionWeightDimensionsPrice
(Ex VAT)
Price
(Inc VAT)
Quantity
ABCDE
Structural Offset Side Palm Fixing 33.7mm tube diameter - 144Structural Offset Side Palm Fixing 33.7mm tube diameter - 144
£4.01 ex VAT, £4.81 inc VAT
0.86 kg103.095.067.057.045.0£4.01£4.81
Structural Offset Side Palm Fixing 42.4mm tube diameter - 144Structural Offset Side Palm Fixing 42.4mm tube diameter - 144
£5.33 ex VAT, £6.40 inc VAT
1.18 kg112.0110.072.063.554.0£5.33£6.40
Structural Offset Side Palm Fixing 48.3mm tube diameter - 144Structural Offset Side Palm Fixing 48.3mm tube diameter - 144
£6.48 ex VAT, £7.78 inc VAT
1.36 kg120.0120.089.073.063.0£6.48£7.78
