TUBE CLAMPBase Plate - 132

Base Plate - 132

Base flange, usually used for uprights on level sites. Fixing holes suit a wide range of common mechanical and chemical masonry anchors which we should be pleased to quote for on request. Type 132-D48 is designed to meet the dimensional requirements for parapets as defined by BS7818:1995 (Pedestrian Restraint Systems in Metal).

Warning: To achieve optimum load characteristics, this fitting should be fitted so that the fixing holes are in line with the applied load.

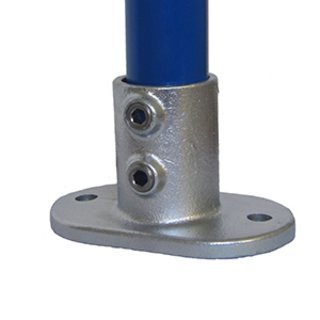

The tubes are shown in blue for marketing purposes only, to show the detail on the clamps.

All our clamps are supplied complete with grub screws. Additional replacement screws can also be purchased click here

Please note the through bolt, thunder bolt and 12mm SDS drill bit are NOT suitable for use with 26.9mm tube clamps.

ImportantThis product contains fixing holes. We do not recommend pre-drilling prior to receiving the product as there can be irregularities in casting that can produce small variations in the size of the holes. Any measurements shown should be regarded as a guideline only.

DescriptionWeightDimensionsWas
(Ex VAT)
Now Only
(Ex VAT)
Now Only
(Inc VAT)
Quantity

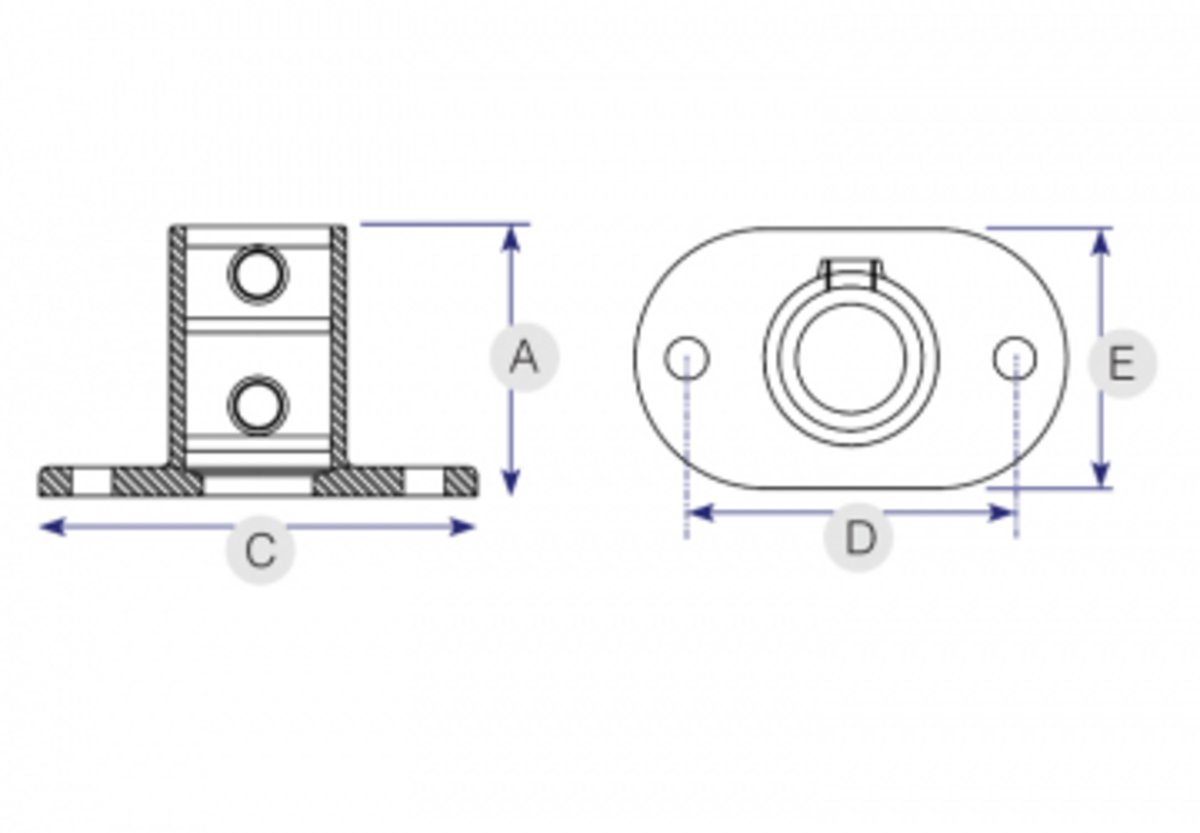

ABCDE
Base Plate 26.9mm tube diameter - 132Base Plate 26.9mm tube diameter - 132
Was £2.95, Now £2.51 ex VAT, £3.01 inc VAT
0.41 kg60.0105.076.052.0£2.95£2.51£3.01
Base Plate 33.7mm tube diameter - 132Base Plate 33.7mm tube diameter - 132
Was £3.28, Now £2.79 ex VAT, £3.35 inc VAT
0.64 kg71.0127.089.062.0£3.28£2.79£3.35
Base Plate 42.4mm tube diameter - 132Base Plate 42.4mm tube diameter - 132
Was £3.81, Now £3.24 ex VAT, £3.89 inc VAT
0.91 kg84.0139.0101.072.0£3.81£3.24£3.89
Base Plate 48.3mm tube diameter - 132Base Plate 48.3mm tube diameter - 132
Was £5.90, Now £5.02 ex VAT, £6.02 inc VAT
1.23 kg89.0152.0114.086.0£5.90£5.02£6.02
Base Plate 60.3mm tube diameter - 132Base Plate 60.3mm tube diameter - 132
Was £7.86, Now £6.68 ex VAT, £8.02 inc VAT
1.66 kg104.0165.0127.096.0£7.86£6.68£8.02
M12 x 100 Through Bolt x 2 for parts 132,145,146, 152, 246, 251 & 252 (not for size 26.9mm/60.3mm)M12 x 100 Through Bolt x 2 for parts 132,145,146, 152, 246, 251 & 252 (not for size 26.9mm/60.3mm)
£2.75 ex VAT, £3.30 inc VAT
0.19 kg£2.75£3.30
M12 x 100 Ankerbolts (Thunderbolts) x 2 for 132, 152, 246, 251 & 252 (not for size 26.9mm/60.3mm)M12 x 100 Ankerbolts (Thunderbolts) x 2 for 132, 152, 246, 251 & 252 (not for size 26.9mm/60.3mm)
£2.75 ex VAT, £3.30 inc VAT
0.02 kg£2.75£3.30
718105 SDS 12mm x 160mm drill bit for parts 132, 152, 246, 251 & 252 (not for sizes 26.9mm & 60.3mm)718105 SDS 12mm x 160mm drill bit for parts 132, 152, 246, 251 & 252 (not for sizes 26.9mm & 60.3mm)
£5.99 ex VAT, £7.19 inc VAT
0.11 kg£5.99£7.19
M16 x 100 Through Bolt - pack of 2 (suitable for use with 60.3mm tube clamp part 132)M16 x 100 Through Bolt - pack of 2 (suitable for use with 60.3mm tube clamp part 132)
£4.30 ex VAT, £5.16 inc VAT
0.38 kg£4.30£5.16
117658 SDS 16mm x 210mm drillbit (suitable for use with 60.3mm tube clamp part 132)117658 SDS 16mm x 210mm drillbit (suitable for use with 60.3mm tube clamp part 132)
£3.73 ex VAT, £4.48 inc VAT
0.18 kg£3.73£4.48
